Plasmo.jl for Distributed Memory

RemoteOptiGraph Overview

In large-scale problems, there can be instances where memory limits optimization or decomposition approaches. In such cases, it can be necessary to distribute the optimization problem to multiple processors. Plasmo.jl has support for placing subgraphs of an optimization problem on separate workers by using the RemoteOptiGraph object. At the moment, this is primarily used when applying a decomposition approach where you may want separate subproblems that can be solved on separate workers while still capturing connections (e.g., constraints as edges) between the subproblems.

The RemoteOptiGraph object can be thought of as a wrapper for an OptiGraph that is stored on a remote worker. The RemoteOptiGraph wrapper "lives" on the primary worker running the Julia REPL while the OptiGraph itself is stored on a remote process. The RemoteOptiGraph can also have nested subgraphs (just like an OptiGraph can contain nested OptiGraphs) with each subgraph stored on a worker and can contain InterWorkerEdges that connect the nested RemoteOptiGraphs together (or connect nested RemoteOptiGraphs with nodes on the primary RemoteOptiGraph with its subgraphs).

From a user point of view, the RemoteOptiGraph functions similarly to an OptiGraph. The macros @variable, @constraint, @optinode, and @objective work in the same way for a RemoteOptiGraph as an OptiGraph. These macros, as well as many other JuMP and Plasmo functions have been extended to work with the RemoteOptiGraph object. "Lightweight" remote object references are returned by these functions that point to their corresponding objects stored on the OptiGraph on the remote worker.

Introduction to Distributed Programming

Plasmo.jl's distributed functionality is enabled by Distributed.jl and DistributedArrays.jl. While Plasmo.jl's distributed functionality is designed so that the user largely does not have to interact with the commands to access distributed information, the information in this subsection will be helpful in getting started, building performant code, and debugging models. While this subsection provides some basic information needed for effectively building RemoteOptiGraphs, further details can be found at Distributed.jl and DistributedArrays.jl's source code.

Julia's default is to run code on a main processor or worker. To run distributed code, the user must define additional processors/workers. Distributed.jl refers to the processors in the cluster as procs or processors and the remote workers (outside of the main worker on which the REPL is running) as workers. Calling nprocs() will return the number of processors currently running/accessible while nworkers() will return the number of worker processors (typically nprocs() - 1). Each processor is referenced by an integer ID. The main processor (on which the Julia REPL is running) is always 1. To get the set of processor or worker IDs, a user can call procs and workers.

To run on additional workers, a user must start additional workers in Julia and define code to run on the workers. Additional workers can be added by calling addprocs(num_cpus) where num_cpus is an integer value for the number of processors to add or start. Similarly, a user can run rmprocs to shutdown and remove one or more Julia processors. Once an additional worker is started, a user must also load required packages (e.g., Plasmo) on the worker they want to use. This can be done via the @everywhere macro, which will run the code inside the macro on every worker. For instance, the user can run the following:

using Distributed, Plasmo, JuMP

# add three processors
println(nprocs()) # returns 1
addprocs(3)
println(nprocs()) # returns 4

# Plasmo and JuMP are not defined on the remote workers yet until @everywhere is called
@everywhere begin
    using Plasmo
    using JuMP
end

To run a task on the distributed worker, a user must use functions from Distributed.jl such as remotecall or @spawnat. As an example, remotecall will run a function on a remote worker, such as in the following case:

workers = workers()
A = rand(5000)

f = remotecall(maximum, workers[1], A)

Here, remotecall runs maximum(A) on the first worker indexed in the worker pool. Alternatively, a user can use the @spawnat macro to run code such as in the following case:

f = @spawnat 2 begin
    A = rand(5000)
    maximum(A)
end

In this latter example, the matrix A is never defined on the main worker and is not accessible in the main Julia REPL because the code was run only on the remote worker. In both cases above, f is a Future object, meaning it is a reference to the task performed on the worker. Note that a user might expect this to return a Float value (the maximum value in the random vector), but the Future object is just a reference to what has been done on the remote worker. To get the value of the Future object, a user must "fetch" the value from the worker by calling fetch(f), which will return the expected Float value.

Cautions with Distributed Programming

While distributed programming can be useful and accelerate task performance on some problems, there are tradeoffs. Variables, functions, or other allocated memory defined on the main processor are not shared directly with the remote workers. Thus at least two places a user may lose performance in their code is 1) making many calls to the remote worker (e.g., many fetch or @spawnat calls) and 2) passing large datastructures between the main and remote processors. A user must therefore be careful about both of these tasks.

Limiting calls to the remote

As an example of the first challenge, the second function below will be more efficient than the first because there is only one remotecall to the worker and only one fetch call, or said another way, the second function outperforms the first because it transfers all of the matrix A in one call, rather than having repeated calls to transfer A a row at a time.

A = rand(100, 100)
function do_remote_task_v1(A::Matrix, worker_id::Int)
    max_values = zeros(100)
    for i in 1:100
        row = A[i, :]
        f = @spawnat worker_id begin
            maximum(row)
        end
        max_values[i] = fetch(f)
    end
    return max_values
end

function do_remote_task_v2(A::Matrix, worker_id::Int)
    f = @spawnat worker_id begin
        max_values = zeros(100)
        for i in 1:100
            row = A[i, :]
            max_values[i] = maximum(row)
        end
        max_values
    end
    return fetch(f)
end

In terms of Plasmo.jl performance, it can be helpful to define constructor functions for graphs that are being built on remote workers. Building large graphs from many different @variable or @constraint calls on the main processor will work but can be slower than running these directly on the remote worker. This is discussed in more detail in the Quickstart on distributed Plasmo.jl.

Limiting memory sent to the remote

Memory form the main worker is shared to the remote worker inside of remotecall or @spawnat, and the user must be careful in what information is shared in these remote calls. For instance, in the following case, the entire A matrix is being shared to the remote worker since it is explicitly referenced inside the @spawnat call even though only one entry of the A matrix is necessary.

A = rand(100, 100)
f = @spawnat workers[1] begin
    A[1, 1] ** 2
end
fetch(f)

As a more efficient option in terms of what memory is implicitly communicated, the user can create a reference/variable for this single entry outside of the fetch call, such as the following:

A = rand(100, 100)
first_entry = A[1,1]
f = @spawnat workers[1] begin
    first_entry ** 2
end
fetch(f)

In the case of Plasmo.jl (or JuMP.jl for that matter), sharing pieces of a traditional optimization problem across workers can include the entire optimization problem. For instance, because each Plasmo.NodeVariableRef includes a reference to a node and each node includes a reference to a graph, passing a Plasmo.NodeVariableRef shares the entire OptiGraph between workers. This was a major motivation for the RemoteOptiGraph abstraction, which has been implemented such that only the required data (e.g., the MOI.VariableIndex) is passed between workers and does not include a reference to the full graph.

Data Structure

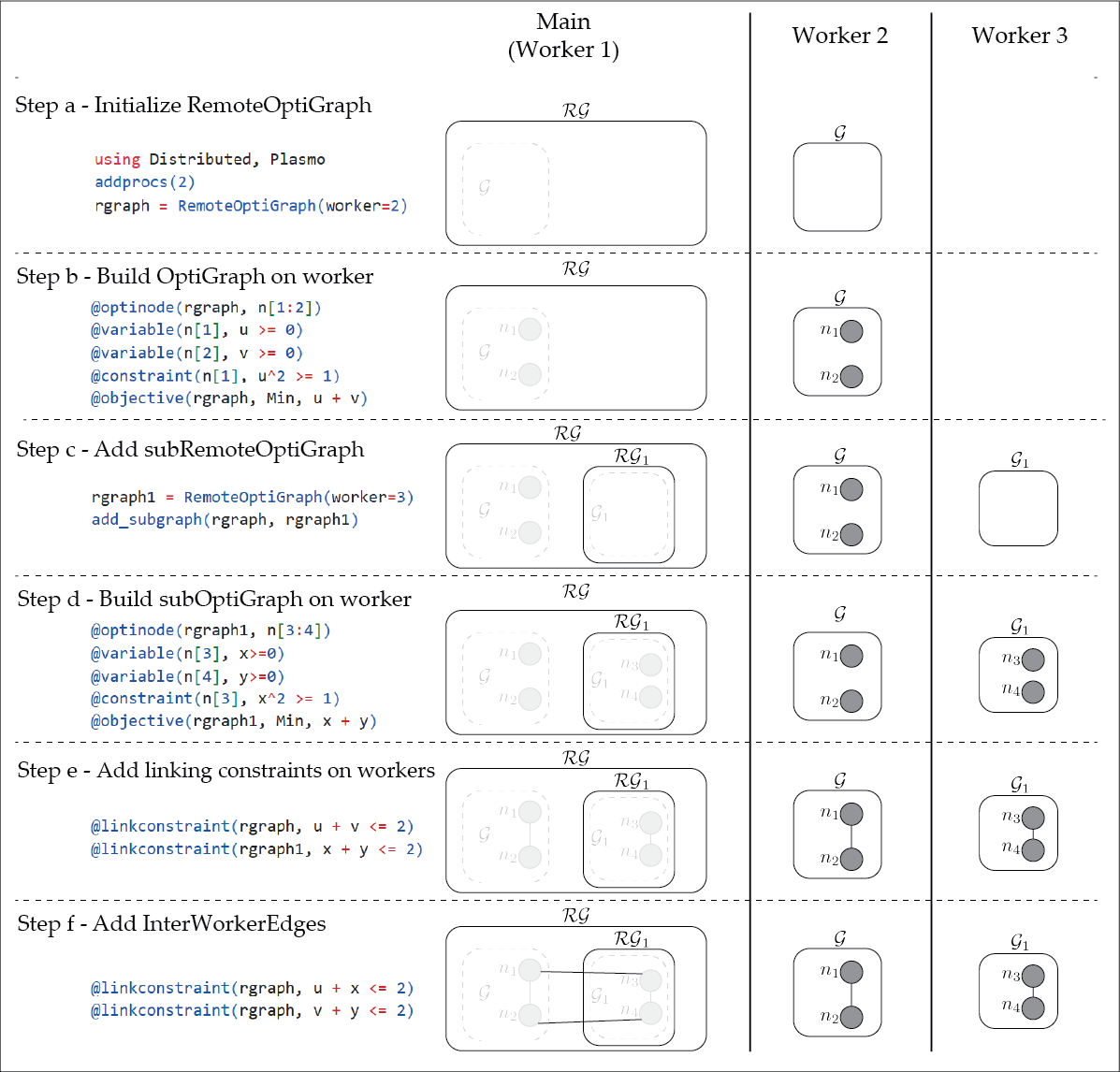

Plasmo.jl's distributed implementation is built on the RemoteOptiGraph data object. This object includes a worker field, which is the remote worker on which the actual OptiGraph is stored. The graph field is a length 1 DArray (a distributed array). The DArray is a light "wrapper" of sorts that stores the actual OptiGraph on the remote worker. RemoteOptiGraphs can also be nested in other RemoteOptiGraphs just as OptiGraphs can be, so there are also fields called parent_graph and subgraphs. Finally, there are fields optiedges, element_data, obj_data, label, and ext.

Several reference types and objects have been defined for working with the distributed implementation. The RemoteOptiGraph object "lives on the main worker and is essentially a wrapper and pointer to an OptiGraph on the remote worker. Nodes, edges, and variables from the OptiGraph on the remote worker can be referenced on the main worker via the structs RemoteNodeRef, RemoteEdgeRef, and RemoteVariableRef. Each of these objects belongs to the RemoteOptiGraph but includes information that points to the objects on the remote worker. In this way, the functions for working with Plasmo.jl's OptiGraph object have been extended for working with these remote reference objects. For instance, calling @optinode and passing a RemoteOptiGraph object will add the node to the OptiGraph on the remote worker and return a RemoteNodeRef to the main worker that represents the actual node added on the remote worker. Similarly, passing a RemoteNodeRef to the @variable constructs variables on the remote worker's OptiGraph but returns RemoteVariableRef objects on the main worker. Examples of many of these functions are included in the Distributed OptiGraph QuickStart.

The other important data structure is the InterWorkerEdge. This object captures constraints between multiple RemoteOptiGraphs. Since RemoteOptiGraphs can capture nested structures, constraints between these structures are stored on the InterWorkerEdge. These constraints are stored directly on the RemoteOptiGraph object. In this way, the RmeoteOptiEdge structure is different than the RemoteEdgeRef, since the latter represents an edges contained in the OptiGraph object stored on the remote worker.

Finally, we note on these RemoteOptiGraph objects are likely most useful for decomposition approaches or situations where there are memory limiations. Unlike the OptiGraph abstraction, calling JuMP.optimize! on a RemoteOptiGraph only optimizes the OptiGraph that is stored remotely on the RemoteOptiGraph and does NOT consider subgraphs. When optimizing an OptiGraph, calling JuMP.optimize! will include all subgraphs in the optimization problem, but this is not the case of the remote.

Decomposition Schemes for Working with RemoteOptiGraphs

The package PlasmoBenders.jl has been designed to work with both Plasmo.jl's OptiGraphs and RemoteOptiGraphs. This package implements Benders decomposition and is available here. Using the RemoteOptiGraphs with PlasmoBenders.jl requires PlasmoBenders v0.2.0+.
